Hot Sale V Type Series Sintered Brass Bronze pneumatic muffler Customized

Video Description

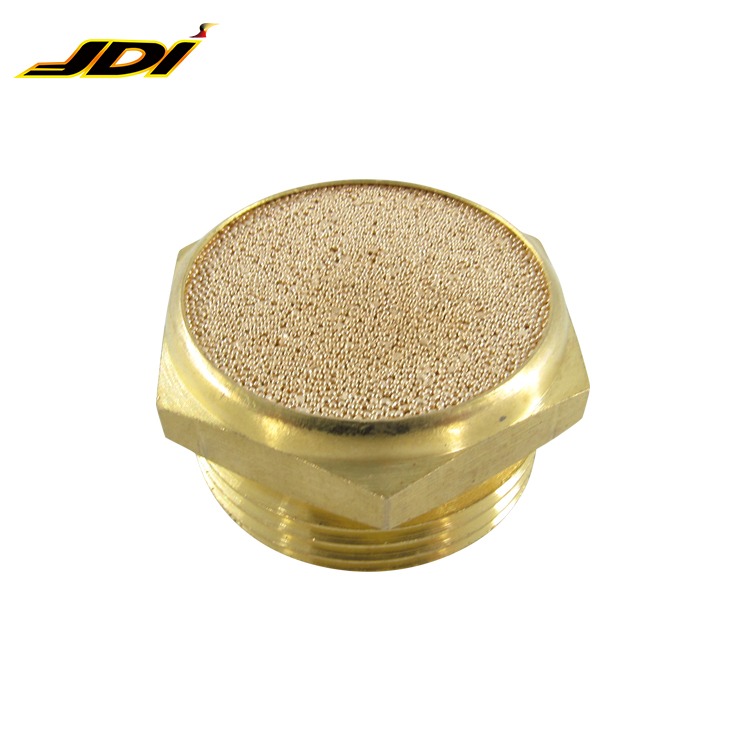

Hot Sale V Type Series Sintered Brass Bronze pneumatic muffler Customized

Basing on abundant experience and technology.we could offer different material as bronze ,brass,stainless steel,plastic etc

Product Application

Metal powder sintered filter core, processed into powder by various metals, sintered at high temperature, with high filtration precision, good gas permeability, high mechanical strength, high material utilization rate, suitable for high working temperature and thermal shock resistance, and rust and acid and alkali corrosion resistance. Widely used in pneumatic components, chemical industry, environmental protection and other fields, can produce various shapes, structures, different particle size, porosity of porous components, such as: cover, cap, sheet, tube, rod filter element.

     Muffler series main technical parameter

DN

Working medium

Working pressure

Working temperature

Flow rate

Noise alimintion effect

2.5

Compressed air

0-1.5   (Mpa)

-10~250°C

 200 L/min

≥20dB

6

960 L/min

8

1920 L/min

10

2880 L/min

15

5280 L/min

20

9120 L/min

25

14400 L/min

32

19200 L/min

≥25dB

40

31200 L/min

50

33600 L/min

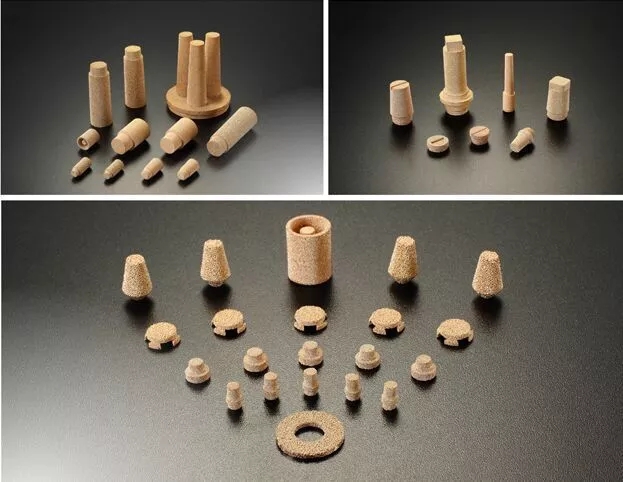

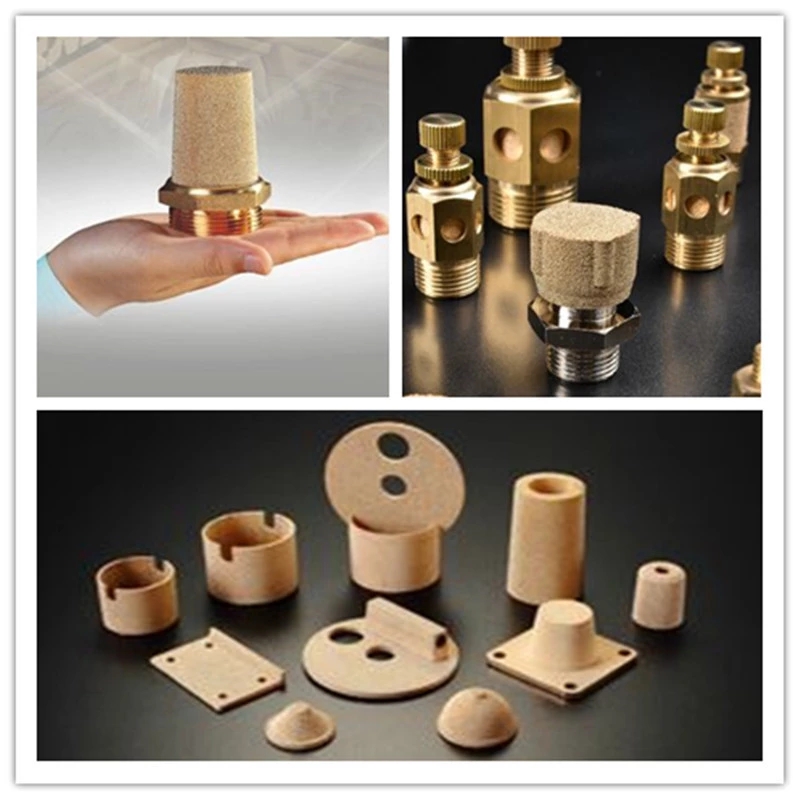

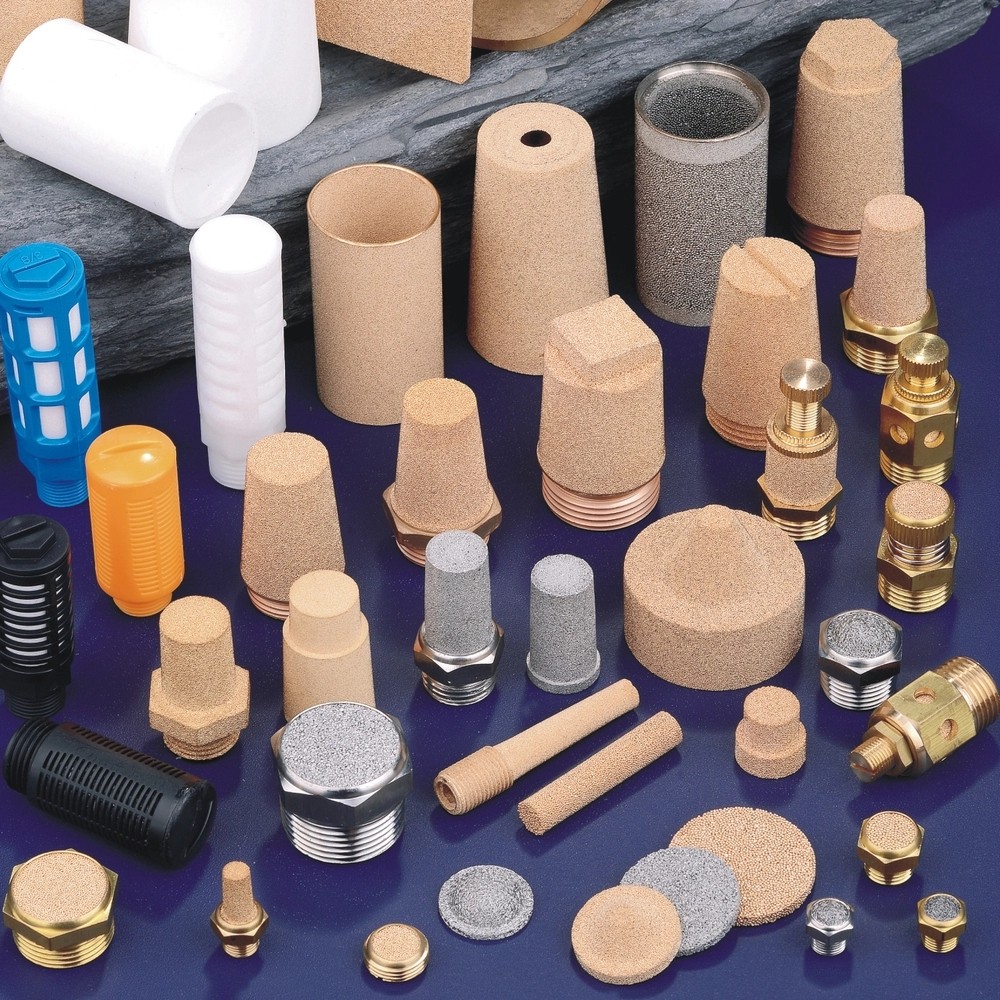

Detailed Images
