Popular PSU type Plastic Material exhaust silencer Air Compressor Muffler

Video Description

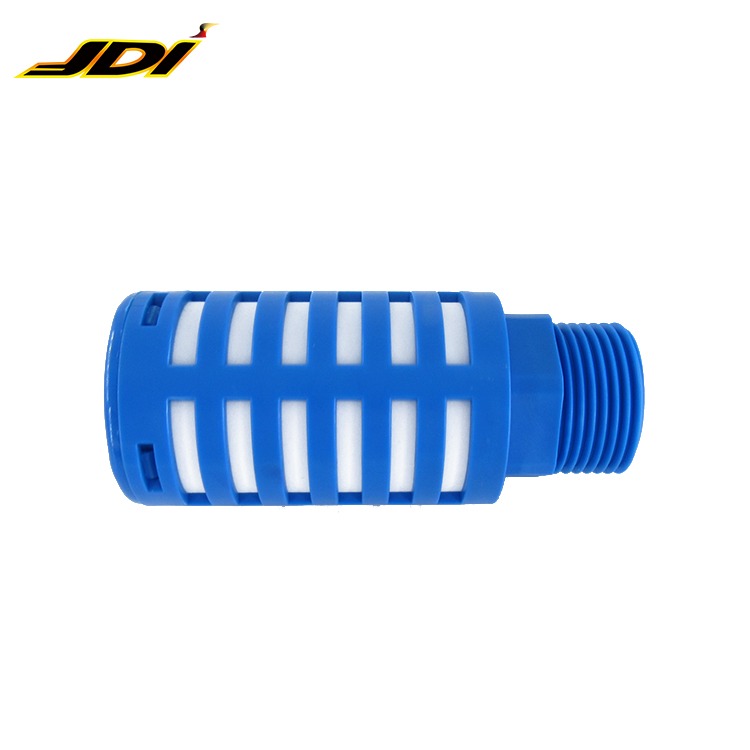

Popular PSU type Plastic Material exhaust silencer Air Compressor Muffler

Basing on abundant experience and technology.we could offer different material as bronze ,brass,stainless steel,plastic etc

Product Application

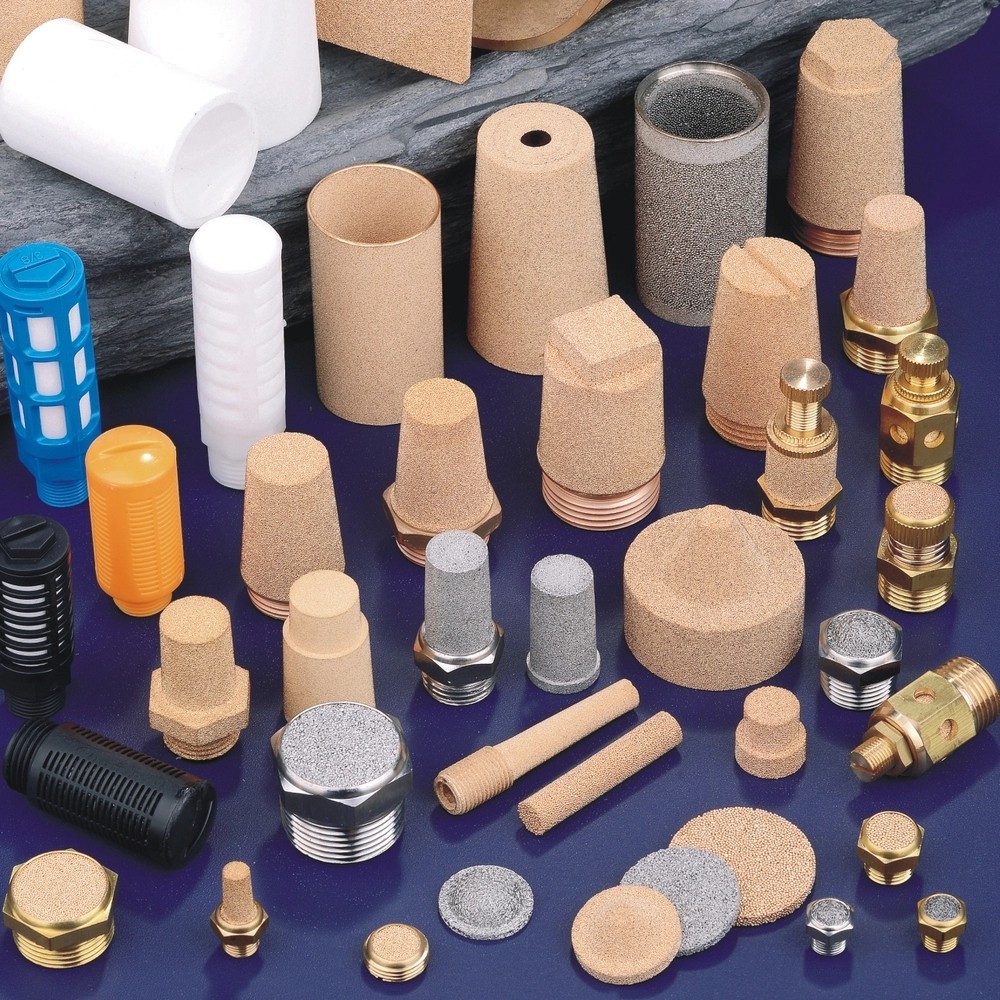

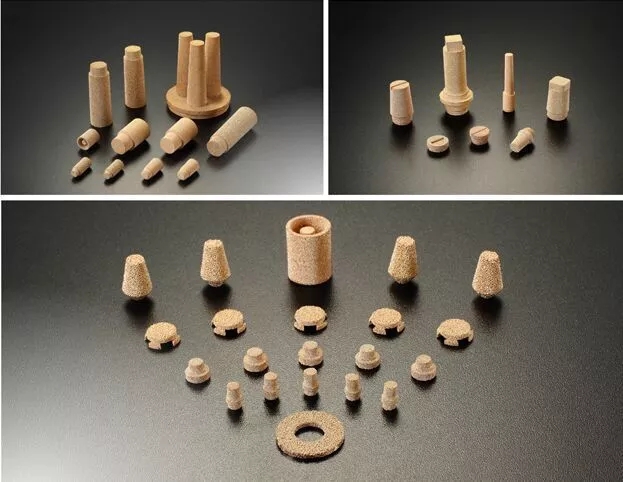

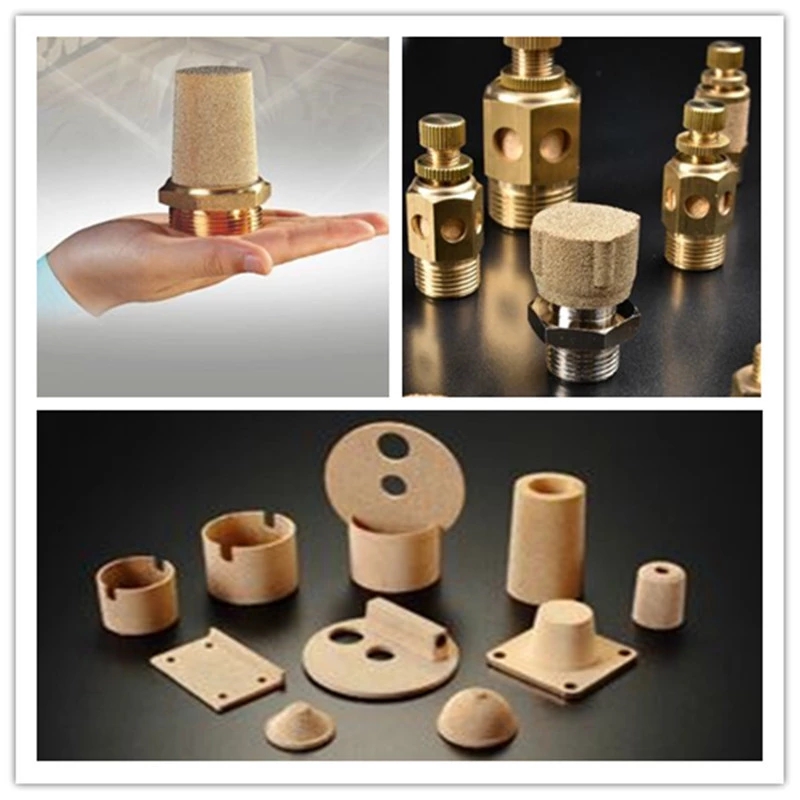

Metal powder sintered filter core, processed into powder by various metals, sintered at high temperature, with high filtration precision, good gas permeability, high mechanical strength, high material utilization rate, suitable for high working temperature and thermal shock resistance, and rust and acid and alkali corrosion resistance. Widely used in pneumatic components, chemical industry, environmental protection and other fields, can produce various shapes, structures, different particle size, porosity of porous components, such as: cover, cap, sheet, tube, rod filter element.

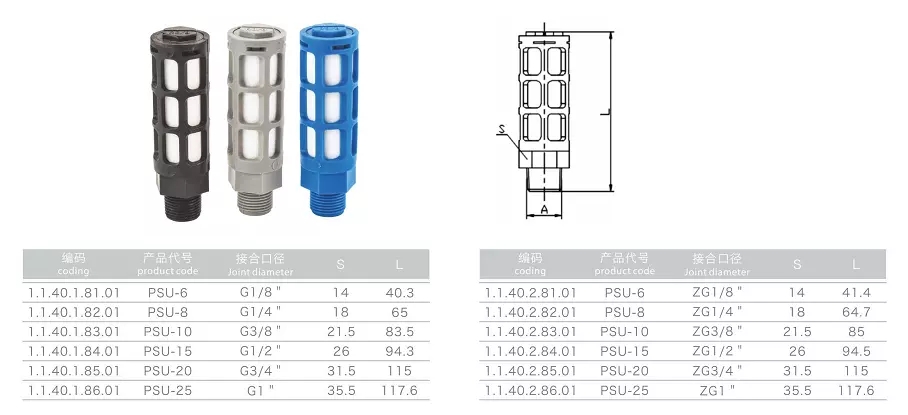

  Plastic Muffler main technical parameter

Working medium

Compressed air

Max working pressure

0.6Mpa

Environment and medium temperature

 50~80°C

Noise alimintion effect

≥30dB

DN

2.5

6

8

10

15

20

25

Standard flux

280 L/min

1450L/min

2600 L/min

5050L/min

8640L/min

10000 L/min

19200 L/min

Jiont caliber

M5

1/8"

1/4"

3/8"

1/2"

3/4"

1"

Material

Housing:POM  Fitler :PE

Detailed Images
