Popular Cheaper SD Type Timing Exhaust Muffler Throttle Valve Air Silencers

Video Description

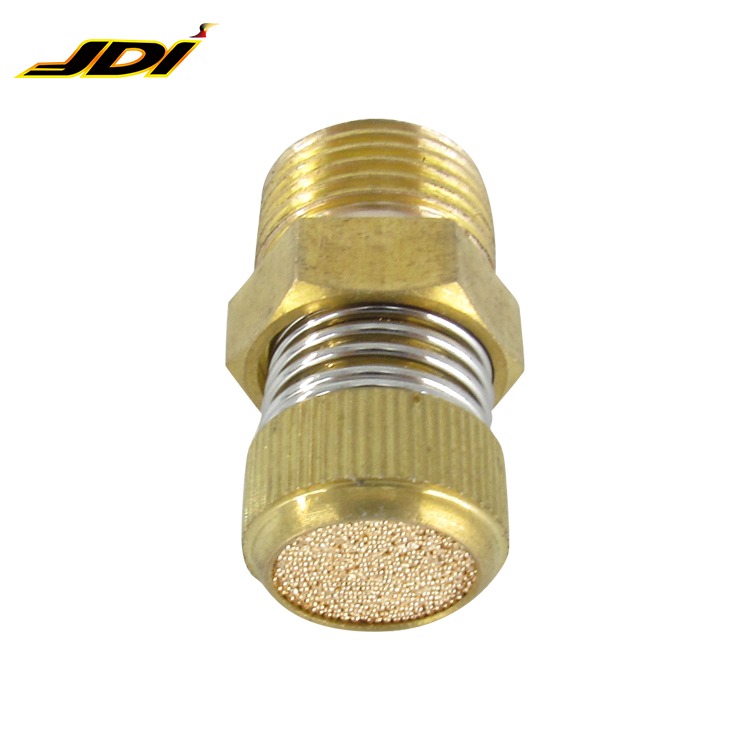

Popular Cheaper SD Type Timing Exhaust Muffler Throttle Valve Air Silencers

Basing on abundant experience and technology.we could offer different material as bronze ,brass,stainless steel,plastic etc

Product Application

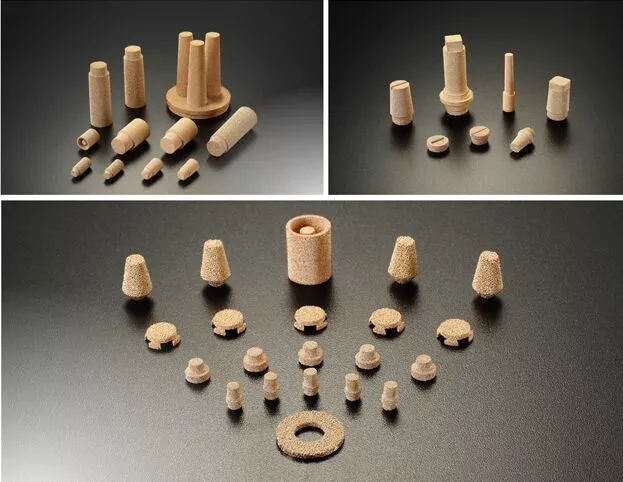

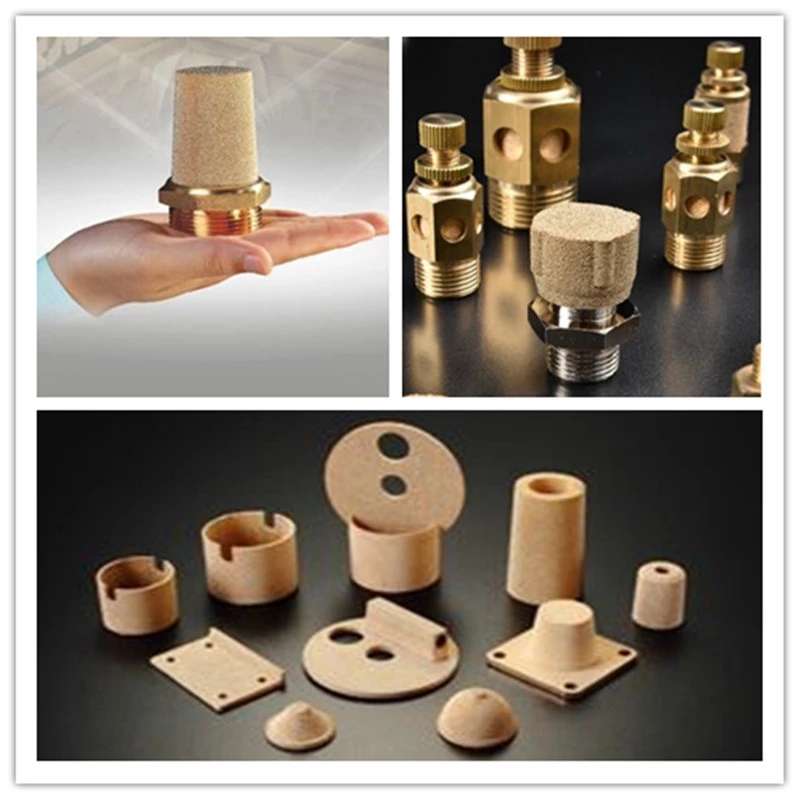

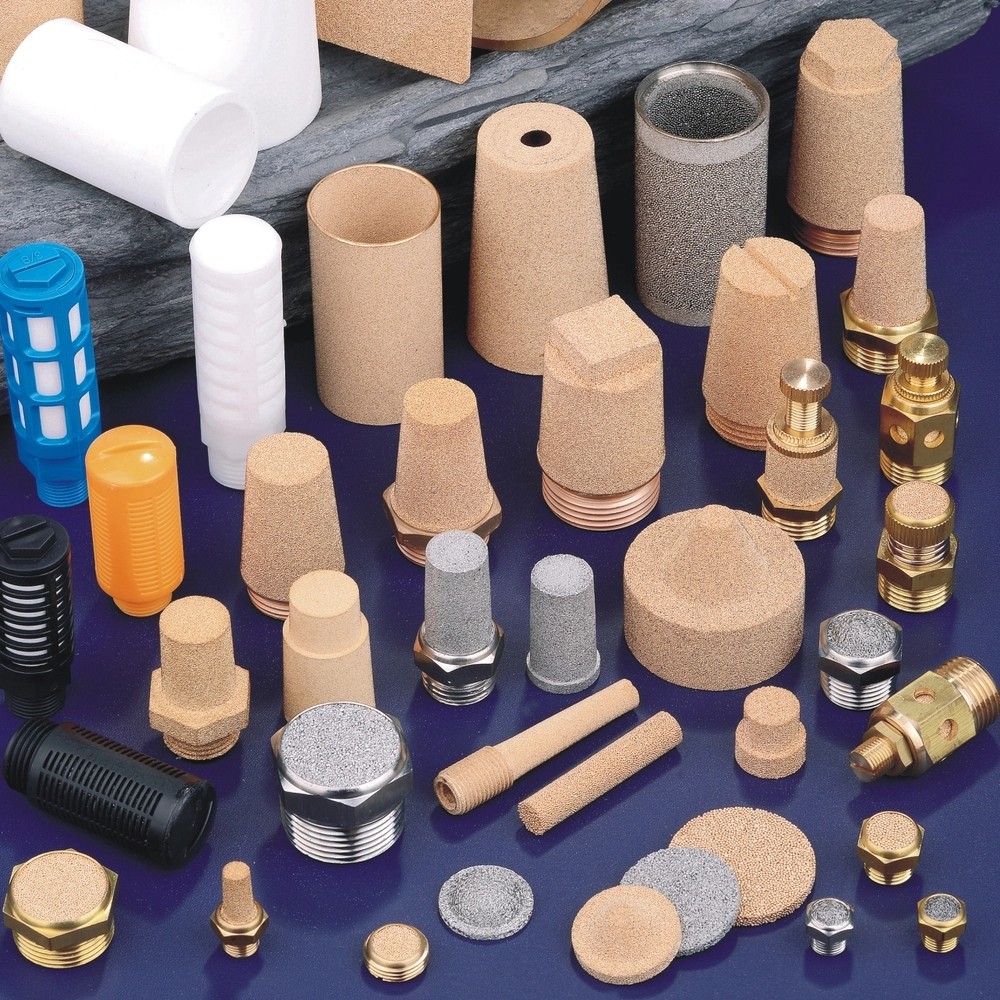

Metal powder sintered filter core, processed into powder by various metals, sintered at high temperature, with high filtration precision, good gas permeability, high mechanical strength, high material utilization rate, suitable for high working temperature and thermal shock resistance, and rust and acid and alkali corrosion resistance. Widely used in pneumatic components, chemical industry, environmental protection and other fields, can produce various shapes, structures, different particle size, porosity of porous components, such as: cover, cap, sheet, tube, rod filter element.

    Exhaust Muffing Throttle Valve  series main technical parameter

Screw Thread

DN

Working medium

Working pressure

Working temperature

Flow rate

Noise alimintion effect

1/8"M10X1

6

Filtrated

Compressed air

0-1.5   (Mpa)

 -10~250°C

0~650 L/min

88dB(A)

1/4"M12X1.25

8

0~1450L/min

85dB(A)

3/8"M16X1.5

10

0~2600L/min

85dB(A)

1/2"M20X1.5

15

0~3950L/min

83dB(A)

3/4"M27X2

20

0~9200L/min

80dB(A)

1"M33X2

25

0~16240L/min

80dB(A)

Detailed Images
