100w Flexible Monocrystalline Solar Panel Kit, 18 Volt 5.5A, Up to 30 Degree Arc Ultra Thin, for RV, Boat, Yachts, Tent, Camper Van, Car, Trucks, Trailers
Solar Panel can curve to a maximum 30-degree arc, which makes it ideal for storage in tight spaces or crowded areas. This solar panel packs 100W of power, but it only weighs a mere 2.6 pounds, making it easier to transport, hang, and install.
The solar panel is completely waterproof, can work for a long time in strong sunlight, and is very suitable for use in harsh
environments such as outdoors and the sea. The flexible solar panel has six holes reserved, which can effortlessly fix on the top of the nylon canvas.
Specification
Power | 100W |
|
|
open circuit voltage | 23.2V |
|
|
short circuit voltage | 5.3A |
|
|
working voltage | 19.8V |
|
|
working current | 5.05A |
|
|
max.system voltage | 300V |
|
|
cell efficiency | >21% |
|
|
size | 1005*515*2.8mm |
|
|
weight | 1.8kg |
|
|
color | black |
|
|
output | MC4 cable(0.9m) |
|
|
cell type | monocrystalline |
|
|
front material(option) | ETFE/PET |
|
|
max flexed angel | 30 degree |
|
|
operating temperature | -20-80℃ |
|
|
Certificate | CE, ROHS, IEC |
|
|
application | it is widly used for trailers, boats, cabins, tents, cars, trucks, trailers, yachts, trailers, roofs, or any other irregular
surface, also charge for power station or battery |
|
|
Higher solar conversion efficiency

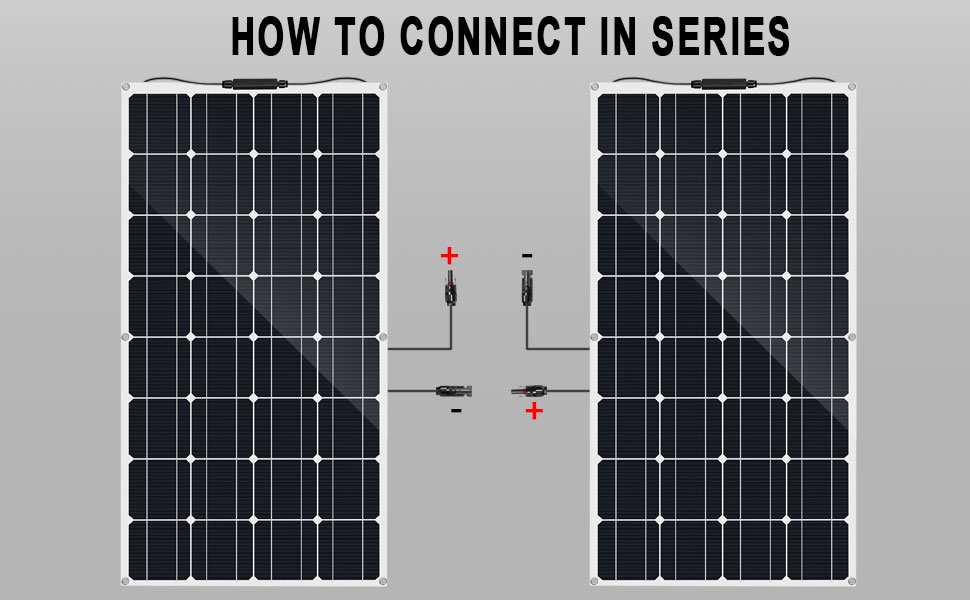

it can be connected in series or in parallel
Flexible
Solar panel has 5 layers, all of which are made of flexible materials. It is flexible and can be installed on a curved surface and ship roof
Completely well waterproof
The electronic interface of Himino solar panel is sealed with waterproof glue to ensure no water immersion
Tear resistant
The interface of Himino solar panel is engineered with high-temperature anti-corrosion PVC fabric,resulting in a high wear, tear resistant.
